ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Nguồn gốc:

Quảng Đông, Trung Quốc

Hàng hiệu:

YUYANG

Chứng nhận:

CE

Số mô hình:

YYF008

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Phạm vi thông lượng nhiệt:
0-15 Kw/m2
Độ chính xác của thông lượng nhiệt:
±0,2Kw/m2
Tốc độ xả:
2,5±0,2 m/s
Chiều cao ngọn lửa:
Điều chỉnh 60-120mm
Hệ thống đánh lửa:
Điện tử cao áp
Tốc độ dòng khí:
0,026±0,002 lít/giây
Tổng công suất:
2KW
Nguồn điện:
AC 220V, 50Hz
Dòng năng lượng bức xạ:
1,1-10,9 kW/m2
Phạm vi đo thông lượng nhiệt:
0-50kw/m2
Độ phát xạ bề mặt:
ε=0,95±0,05
Điện áp hoạt động:
230V, 10A
Nhiệt độ hoạt động:
10°C đến 35°C
Góc bảng bức xạ:
30 độ
Nguồn cung cấp khí:
Propan và máy nén khí
Làm nổi bật:

ISO 9239-1 flooring radiant heat tester

,

ASTM E 846 flammability test machine

,

radiant heat flux test apparatus

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1
Mô tả sản phẩm
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus
This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.
Product Overview
The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.
This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.
Compliance Standards
• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy
Key Features

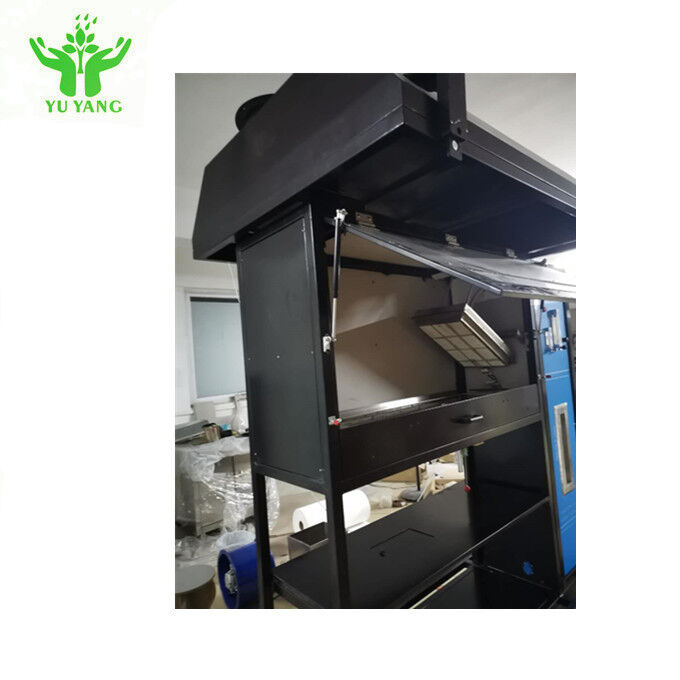

  • Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
  • Stainless steel sample support assembly on sliding platform for safe and easy sample loading

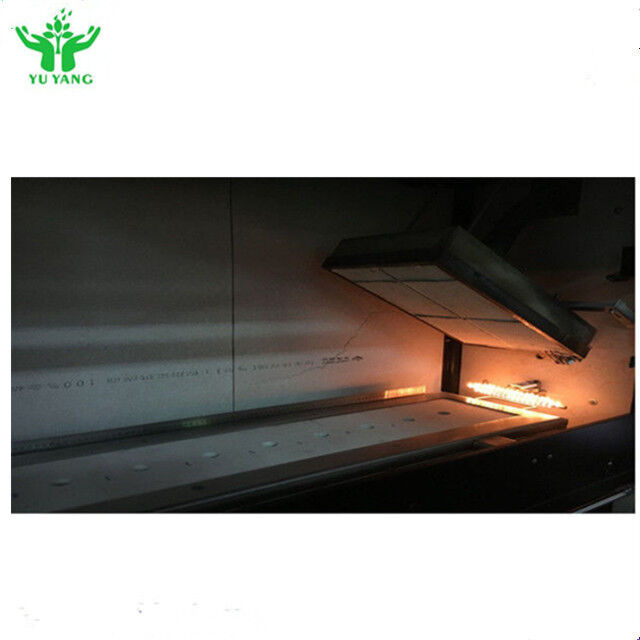

  • Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
  • Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
  • Dummy calibration specimen with holder and calibrated heat flux meter
  • Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
  • Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
  • Integrated smoke measuring system according to DIN 50055

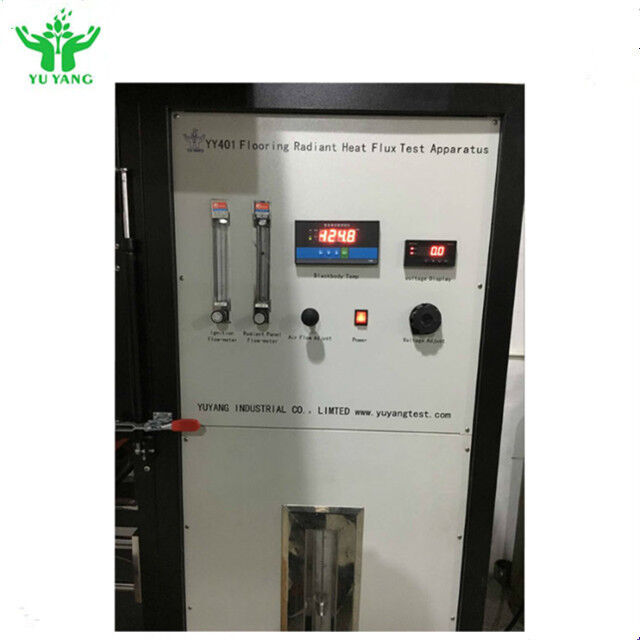

  • Control rack for convenient observation and operation during setup and calibration
  • Automatic ignition of radiant panel with safety cut-out
  • Automatic moving T-type ignition burner

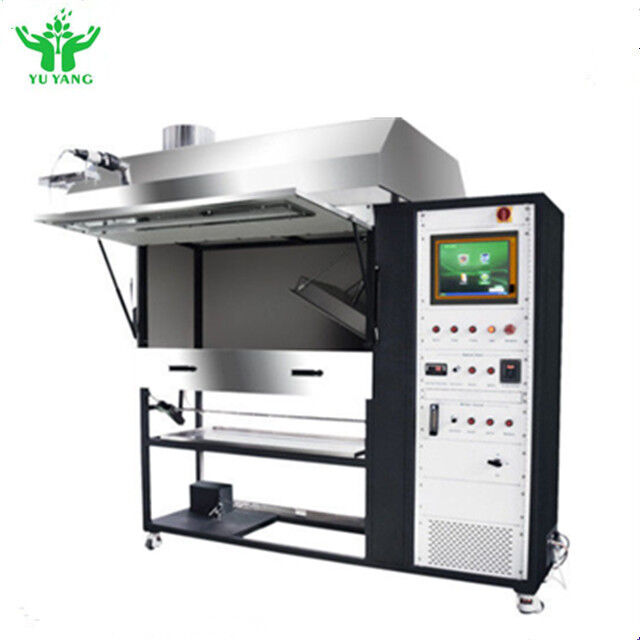

  • Stainless steel hood with smoke measurement ports
Installation Requirements
Parameter Specification
Electrical 230 volts Nominal, 10 Amps
Ambient Temperature Operating range: 10°C to 35°C
Gas Supplies Propane and air compressor
Product Images

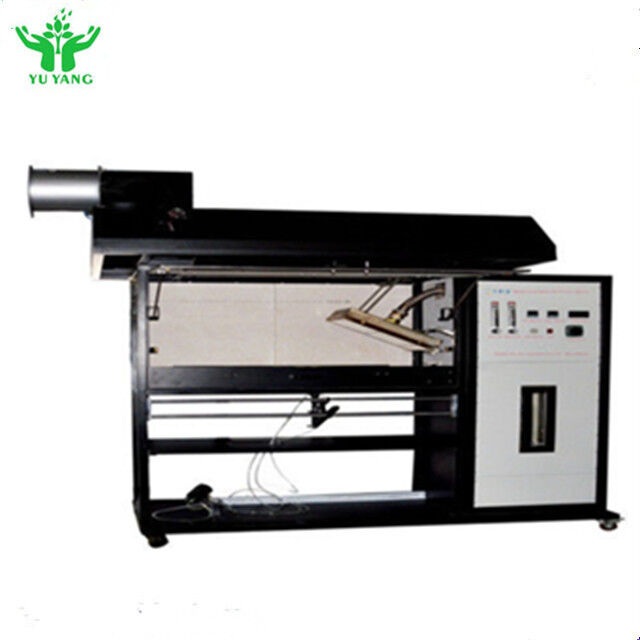

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 0
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 1
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 2
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 3
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 4
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 5
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 6
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 7
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 8
ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine 9
