Halogen Acid Gas Cable Combustion Corrosivity Tester
Compliant with EN 60754, EN 50575, IEC 60754, UL 1685, and UL 1581 standards for measuring pH and conductivity of halogen acid gases released during cable combustion.
Product Overview

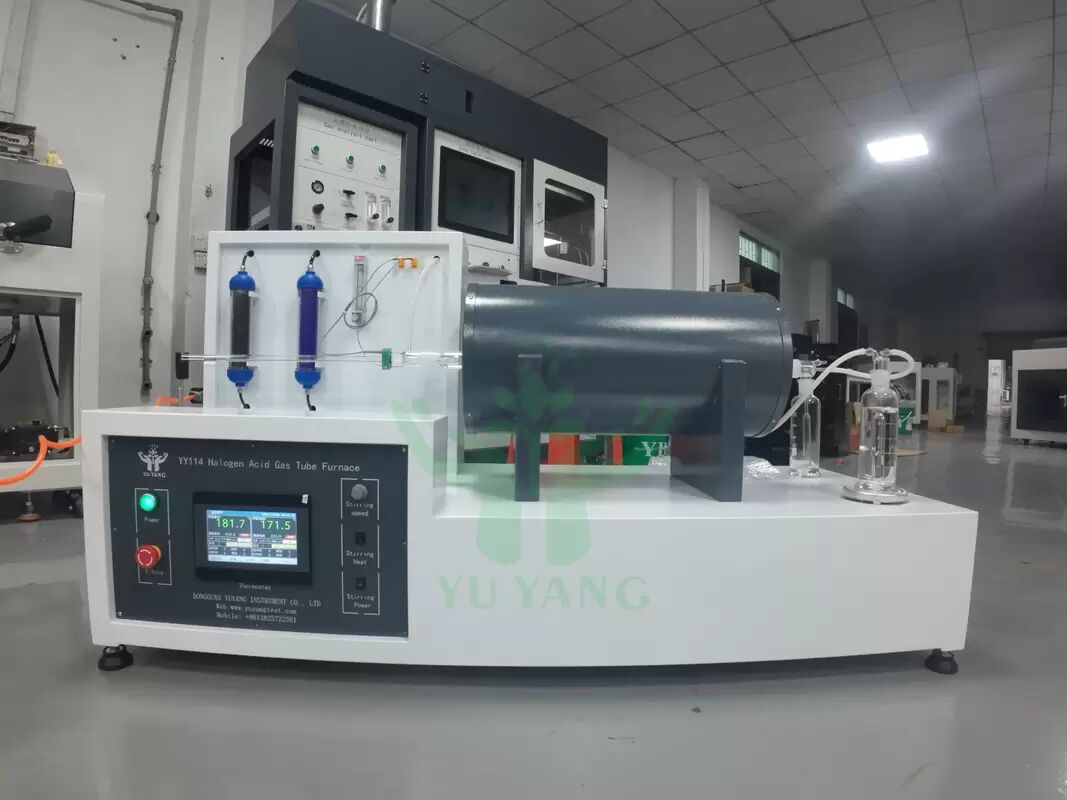

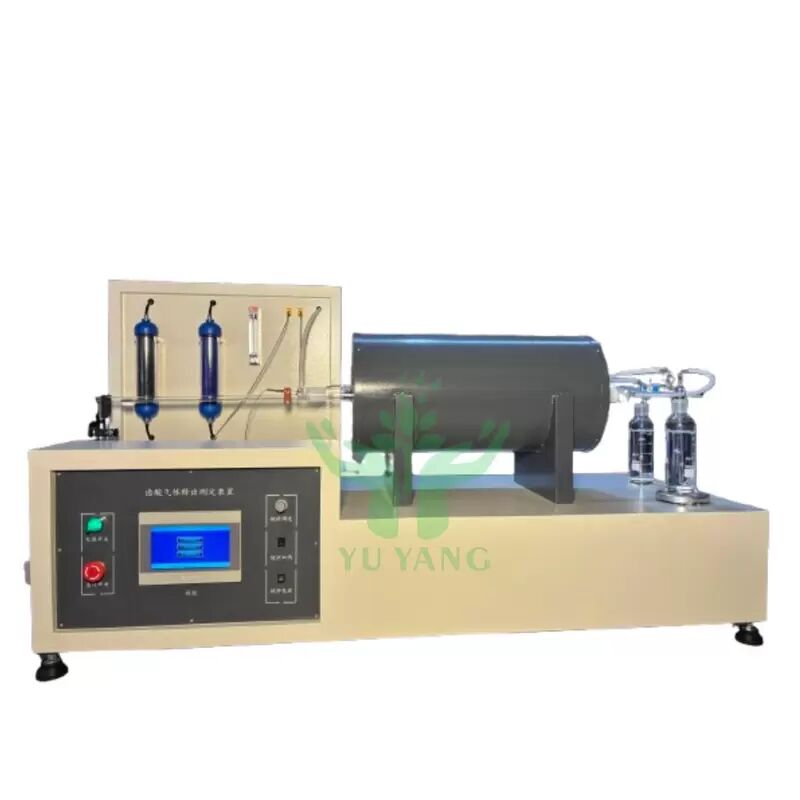

The Halogen Acid Gas Tube Furnace is designed to test the acidity of gases released during combustion from cable or optical cable component materials. This system processes cable materials through a precision tube furnace and measures the pH value and conductivity of generated combustion gases to determine material acidity, halogen acid gas concentration, and related parameters.
Compliance Standards
This equipment meets GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994, IEC60754-2:1991 standards. Also compliant with GB/T19666-2005 "General Rules for Flame Retardant and Fire Resistant Wires and Cables" sections 6.3.4 of GA306.1-2007, 6.3.4 of GA306.2-2007, and 9.10 and 9.11 of UL2556-2007.
Key Features
- Optimized structure with logical layout for easy operation
- All fixtures constructed from durable stainless steel
- Tube furnace with 500-600mm effective length and 40-60mm inner diameter
- Equipped with imported thermocouple from United States
- Combustion boat dimensions: 45-100mm length, 12-30mm width, 5-10mm depth
- Conductivity measuring range: 0.01μS/mm to 100μS/mm
- Electronic temperature control system with intelligent furnace temperature management

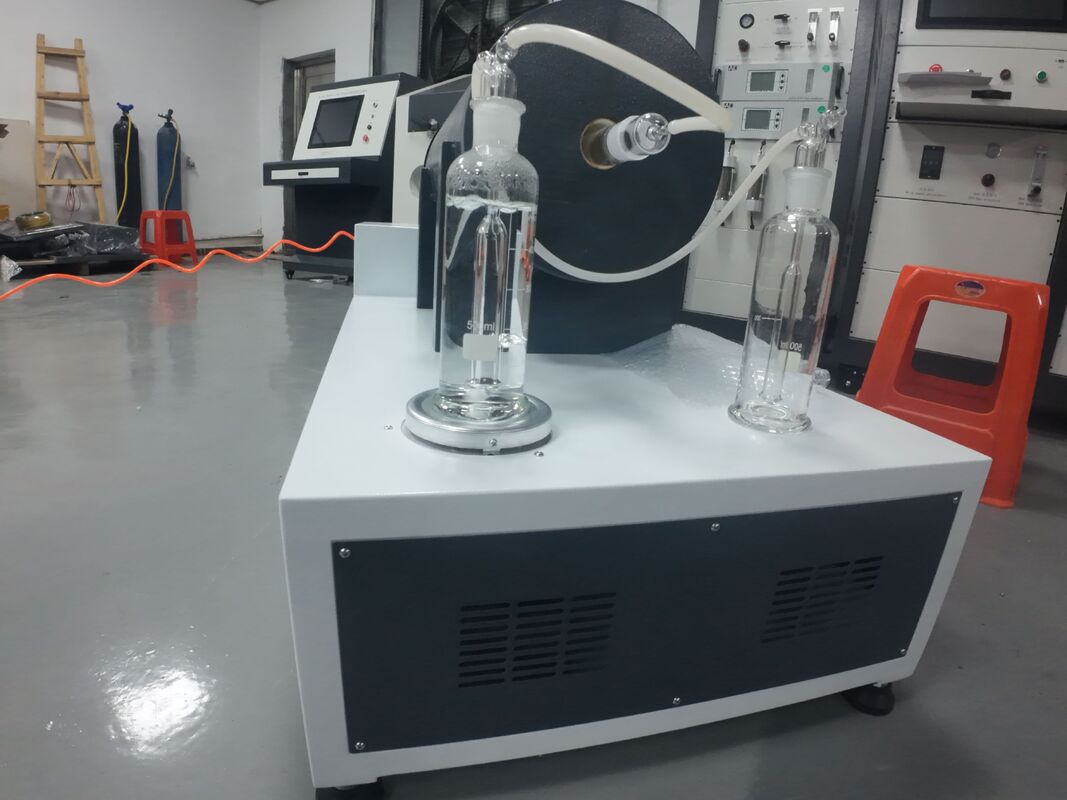

- Dual gas collection bottles included
- 1-liter sample chamber capacity
- Integrated pH value and conductivity detector with electronic display and electrode
- Silicon dioxide fire pipeline airflow meter for corrosion prevention
- Activated carbon air filtration system
- Silicone-based air source drying
- Pyrex pipeline for easy sample insertion and damage protection
- Automatic combustion boat moving system for intelligent testing
- Dual test mode selection (IEC 60754-1 & IEC 60754-2)
- Temperature alarm system to prevent furnace overheating
- Integrated timer for standard-compliant time measurement
- Storage drawer for conductivity meters, pH meters, and accessories
- Real-time furnace core temperature indicator
- Permanent magnetic stirrer for combustion gas agitation in distilled water
- Precision conductivity measurement instrument
- Power requirements: AC220V 50HZ, 25A

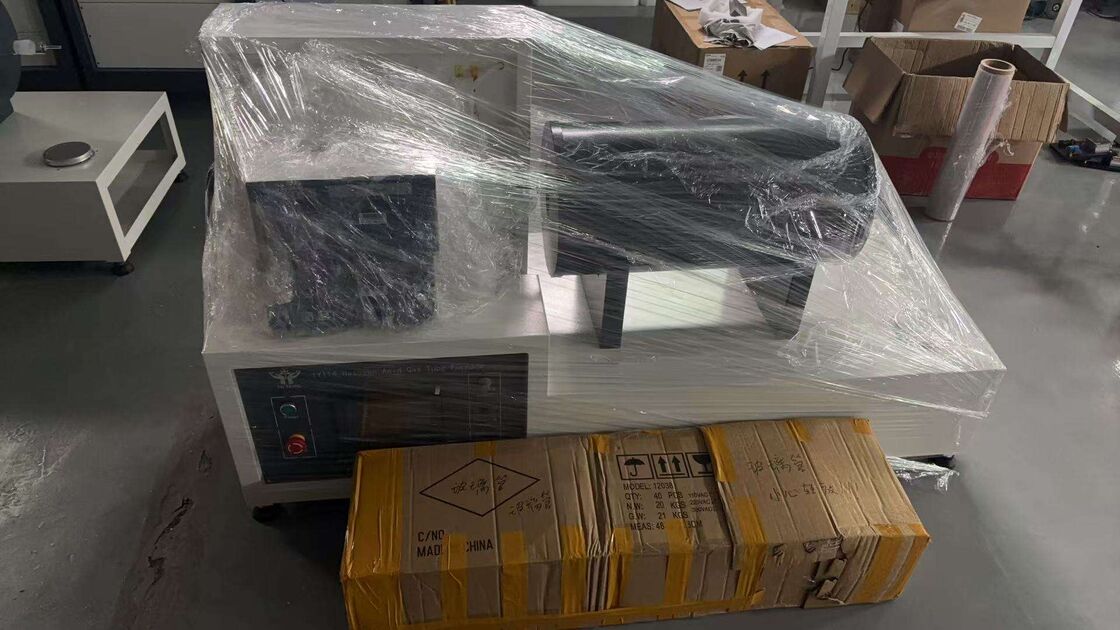

Packaging and transportation methods
