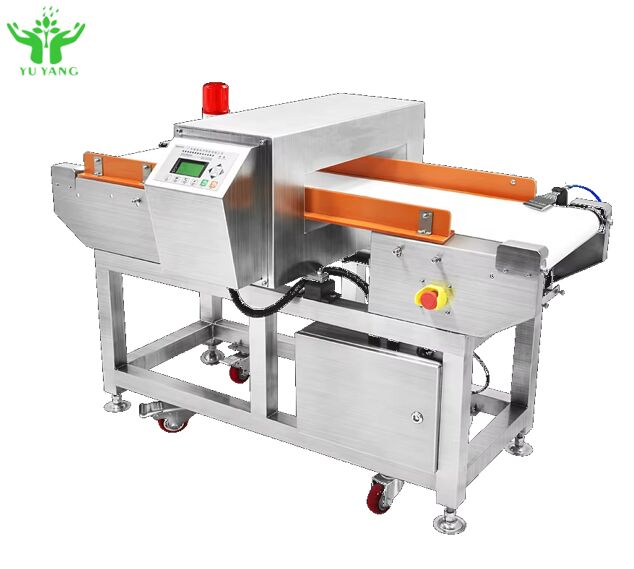

ROHS Certified Digital Metal Detector Machine
High sensitivity industrial metal detector with precise location backlight for accurate metal detection in various applications.
Product Specifications
| Attribute | Value |
|---|
| Material | Stainless steel |
| Machine Length | 1600mm |
| Model Number | YY056 |
| Speed of Belt | 25M/min (Fixed speed) |
| Speed of Transmission | 18-40 meter/minute |
| Customized Support | OEM, ODM, OBM |
| Type | Laboratory equipment |
| Sample Plate Angle | 0~70° |
| Dimension | 72*53*56cm |
| Test Accuracy | ±2％ |
| Working Speed | 0-18 rotate/min can be adjustable |
| Pressure Source | Air pressure more than Min.5kg/cm² |
| Size | Customized |
Applications
Transmission type all-digital metal detection machine is a new generation of microcomputer intelligent metal detection equipment. The product has high sensitivity and stable performance. It breaks through the technical bottleneck that most equipment only responds sensitively to magnetic substances, and has excellent elimination performance for products with moisture and frozen products. The device can detect metals such as iron and non-iron, and can be widely used for metal detection in demanding objects such as food, medicine and toys.
Primary Use Cases
Primarily used for: sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food and other non-food industries. Features high detection sensitivity, anti-interference ability and waterproof standard for hard-working conditions. Detects mixed or lost needles, wires, or lead, copper, aluminium, tin, stainless steel and other kinds of metal in food, raw materials or products.
Key Features
Double circuit electromagnetic wave detection, new analog circuit and digital circuit combination, improving detection sensitivity and reliability.
New type of touch screen input and composition of large scale integrated circuit improves detection intelligence (LIQUID crystal type).
User-friendly interface design, multi-language operation, simple and intuitive process with clear human-machine interface (LIQUID crystal).
Dynamic zero point voltage tracking with automatic learning detection function reduces personnel operation requirements.
Wide adjustable range of sensitivity with reverse detection function (no alarm for metal products).
When metal is detected, sound, light and alarm activate simultaneously, with option to stop machine or kick out unqualified products.
Technical Parameters
| Detected Height (mm) |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
| Belt Width (mm) |
250 |
250 |
400 |
400 |
400 |
400 |
400 |
| Belt Length |
1500 |
| Detector Sensitivity (mm) Fe |
0.8 |
1.0 |
1.2 |
1.5 |
2.0 |
2.5 |
3.0 |
| Detector Sensitivity (mm) SUS |
1.0 |
2.0 |
2.5 |
2.5 |
3.0 |
3.5 |
4.0 |
| Detector Sensitivity (mm) N-Fe |
1.0 |
1.5 |
2.0 |
2.0 |
2.5 |
3.0 |
3.5 |
Additional Specifications
- Speed of belt: 25M/min (Fixed speed); If you need adjustment 5-40 M/min, please inform us before order.
- Load ability: 20KG
- Count: 100
- Warning method: Sound and light alarm; The belt can be stopped, continue run or belt return (the option can be selected in PLC controller).

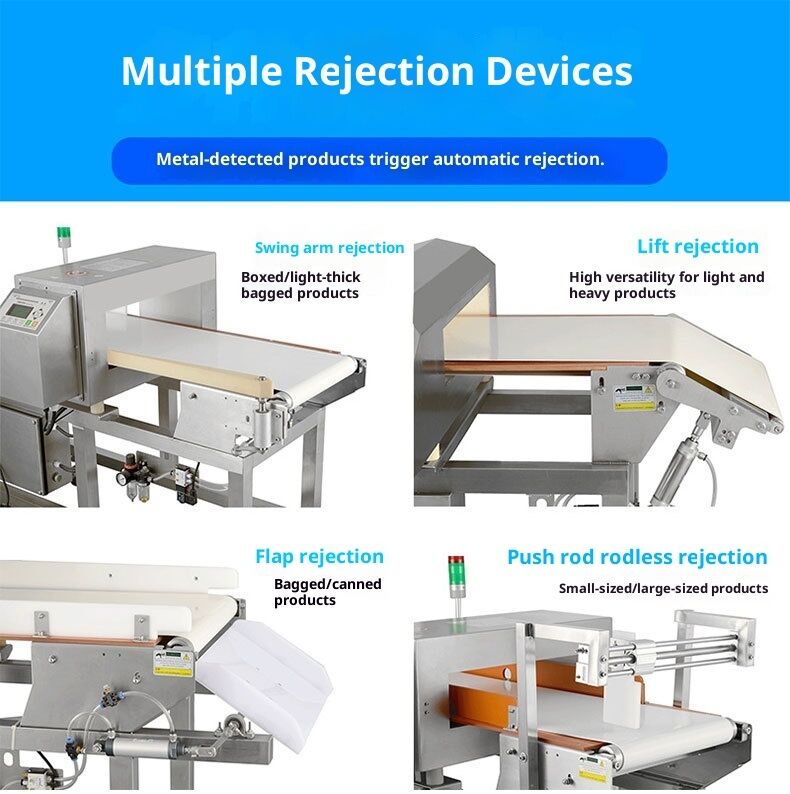

- Reject Ways: When equipped with auto-reject system, belt continues while rejecting the goods.
- Application: Non-package, plastic package, paper bag or box (non-metallic) products.
- Work Environment: Temperature -10℃-40℃, relative humidity 30-90%.
Advanced Technology Features
- Adopt the theory of balance, more reliable
- Phase-adapted technology can adapt products in order to effectively eliminate product effect
- Have self-learning study function, can automatically digitally learn and store product's features. Easy to operate without manual participation to adjust technical parameters
